Indonesia
with its complicated tectonic
setting, crossed by the boundaries of three tectonic plates is highly endangered
by earthquakes. The destructive powers of this hazard are well known to the
public:

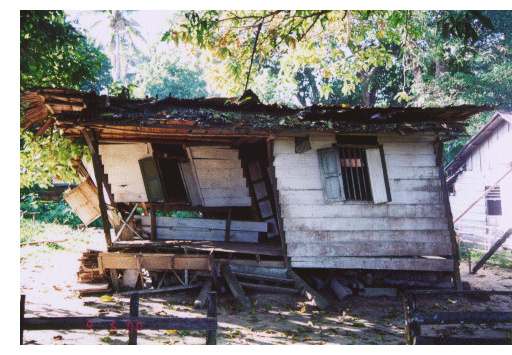

The shaking ground can cause buildings and bridges to collapse and disrupt
gas, electric, and phone services. Especially in Indonesia earthquakes also
trigger landslides and huge, destructive ocean waves called tsunami. The following
overview about some resent disasters gives an impression about Indonesia's
exposure to earthquakes:
2003/05/27 | On the Maluku Island of Morotai one child was killed and at least 28 houses were destroyed (see also BBC) |
2003/03/25 | A strong earthquake shook central Indonesia injuring at least 20 people |
2003/01/26 | In eastern Indonesia 2,000 people lost their houses in an earthquake |
2002/11/02 |
In Sumatra, at lest 48 people injured and thousands homeless after a massive earthquake (see also CNN). |
2002/10/10 | In Papua (eastern Indonesia) at least 3 people die during a heavy earthquake. |
2000/06/06 | In the city of Bengkulu on Sumatra an earthquake causes at least 58 deaths and more than 100 injured (see also CNN). |
2000/05/04 |
In Sulawesi a strong earthquake killed at least 46 and made thousands homeless (see DPA). |
1998/11/29 | An earthquake with its location in the Molucca Sea caused at least 4 victims in eastern Indonesia (see also CNN). |
What is a Tsunami?
The
word "Tsunami" is derived from Japanese. Literally translated it
means "great harbor wave". This is because Tsunami waves can reach
heights of around 40 m when they proceed to coastal areas with lower water
depths. The term contains a suitable description for one of the most threatening
rapid onset natural hazards in the world.
Tsunami can be classified in local and distant (teleseismic) Tsunami according
to the distance from the point of origin to the affected areas. But only a
few major Tsunami traveled across the whole Pacific Ocean damaging distant
areas hours after the initial event took place.
What triggers
a Tsunami?
Tsunamis can be caused by | |
1. | Sudden movements or disturbances of the sea floor during an Earthquake |
2. | Submarine explosions (for example volcanic explosions as in 1883 the Krakatau) |
3. | Landslides at the sea floor as well as Landslides reaching the sea |
4. | Impacts of large objects in the sea (for example: asteroids) |
All these effects cause a disturbance of the whole water column above the original place of action (for example above the Earthquake zone). The disturbance is propagating like a wave in all directions but with a speed of up to 800 km/h. In contrast to wind generated waves the Tsunami affects the whole water column transporting a high amount of energy. On the surface of deep oceans Tsunami waves have only the dimensions of normal wind waves (e.g. around 1 m wave height). But as they approach the continental shelf and finally coastal areas where the water depth is rapidly decreasing, the wave can reach heights of up to 30 m.
What are the potential effects
of Tsunami?
On
the surface of deep oceans Tsunami have almost no effects, as their wave height
is similar to wind waves. The crew of a ship will not be able to recognize
a Tsunami in the open sea.
In coastal areas the energy of the Tsunami wave is forced into lower water
depths, which may result in up to 40 m high wave crests. This huge wave can
dislocate coral reef parts weighing more than 100 tons and take ships hundreds
of meters inland. The initial force of the Tsunami can uproot trees and destroy
all kinds of structures on land (like houses, bridges, streets
). An
additional effect is that the Wave can take up lots debris from coastal areas,
which is then smashed to inland areas with an immense power, turning for example
tree branches into perilous projectiles. Another effect is the strong water
current induced by the oncoming wave as well as the receding water. This can
tear objects and people to the sea and cause heavy erosion in the affected
areas. In addition to that it is characteristic for Tsunami to occur in wave
cycles, which means it is possibly not finished after the first devastating
wave. Smaller or even more powerful waves may proceed to the coast in the
following hours after the first wave arrived.
Where do Tsunami occur?
Worldwide
around 82 % of all Tsunami are triggered by earthquakes. This has a major
effect on the distribution of Tsunami around the world. Tsunamis are usually
bound to the vicinity of active continental plates where most of the Earthquakes
are initiated. This leads to a characteristic distribution of Tsunami around
the so called "Pacific Ring of Fire" covering the circumpacific
coasts from South to North America, Northeast to Southeast Asia up to Northern
Australia and Northern parts of New Zealand.
Indonesia with its complicated tectonic setting (including the active boundaries
of three tectonic plates) and its vast coastal areas has also a high susceptibility
to Tsunami. According to BRYANT (2001) 12% of all Tsunami in the Pacific Region
during the last 200 years hit the coasts of Indonesia. In fact Indonesia is
ranked second behind Japan in the list of countries with a high frequency
of Tsunami in the Pacific.
When and where did Indonesia experience major Tsunami
in the last decade?
Year | Area | Run up height | casualties |
1992 | Flores | 26 m | 1000 |
1994 | Southeast Java | 13 m | 250 |
1995 | East Timor | 4 m | 11 |
1996 | Sulawesi | 5 m | 9 |
1996 | Irian Jaya (Biak) | 8 m | 127 |
What can be done to mitigate potential Tsunami effects in communities?
o |
Education Dissemination of information about Tsunami in primary and secondary school contributes to the understanding of the phenomenon. This should have positive effects to a growing public awareness about Tsunami. |
o |
Planning Guidelines can prevent people from settling in endangered areas. The application of building codes can protect people and their belongings from potential damage. |
o |
Risk mapping identifies areas of potential loss and damage concerning a given Tsunami event. It helps to keep sensitive structures e.g. for emergency response out of the threatened areas. |
o |
Early warning systems can provide crucial information for the evacuation of threatened areas. |
o |
Preparedness A prepared local community will be less vulnerable to Tsunami effects as the people will know what to do if there are any signs or precursors of a Tsunami (for example: Move to higher ground after severe ground shaking due to an Earthquake). |
Which are the project activities related to Tsunami?
The
Project "Mitigation of Geohazards" is dealing with the tsunami risk
in the project area of Maumere (Kabupaten Sikka), Flores
, where a major Tsunami occurred in 1992. It is planned to map the tsunami
threatened areas, assess the potential economic damage as well as to develop
and implement guidelines for the prevention of future tsunami effects.
So far a fact-finding mission to Maumere was conducted in Mai contacting the
related local decision makers and institutions
